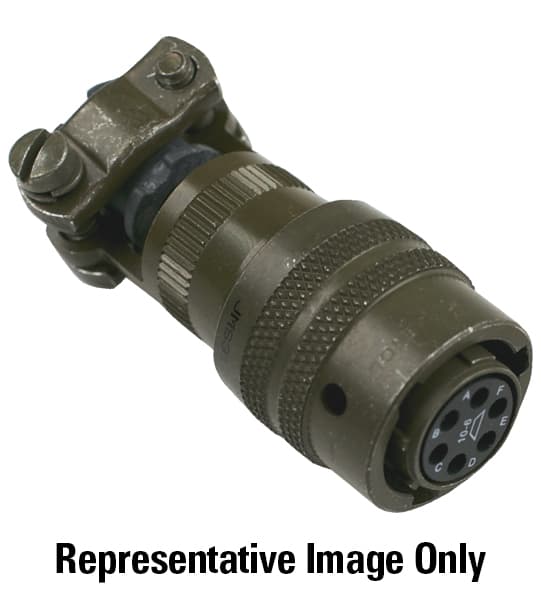

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.MS3116P16-26SY
Used in both military-aerospace and commercial applications, MIL-DTL-26482 I harsh environment connectors are offered with crimp M39029 contacts as well as solder contacts. 26482 1 connectors consist of the following: • Wall mount, box mount, bulkhead mount, cable connecting, jam nut, and hermetic receptacles • Straight plugs Available in 7 shell sizes with 60 insert patterns utilizing solder contacts, and 6 shell sizes with 47 insert patterns utilizing crimp contacts. Contact sizes include 20, 16, 12, 12 coax, and 8 coax. 26482 Series 1 connectors feature rugged aluminum shells with standard olive drab cadmium plating.
Manufacturer
Amphenol Industrial Operations
Manufacturer Product Number
MS3116P16-26SY
Brief Description
MS3116 - Connectors, Plug, Electric, Series 1, Solder Type, Straight, Bayonet Coupling, 26482 Series I
MS3116P16-26SY Product Specification
| Product Category | Products Connectors Circular Connectors & Accessories Circular Connectors |
|---|---|
| Manufacturer | Amphenol Industrial Operations |
| Manufacturer Part Number | Amphenol Industrial Operations MS3116P16-26SY |
| Military Specification | MIL-DTL-26482 I |
| Series | Series I |
| Connector Type | Circular, Plug |
| Number of Contacts | 26 |
| Mount Type | Straight Plug |
| Contact Plating | Gold |
| Maximum Operating Temperature | 125 °C |
| Minimum Operating Temperature | -55 °C |
| Contact Size | 20(26) |
| Contact Type | Solder Contacts |
| Mating Type | Bayonet |
| Finish/Coating | Cadmium Olive Drab |
| Termination Type | Solder |
| Keyway Polarization | Y |
| Service Rating | I |
| Shell Style | Straight Plug |
| Shell Size - Insert Arrangement | 16-26 |
| Service Class | P |
| Shell Material | Aluminum |
| Contact Gender | Female |
| Conductivity | Conductive |
| Ingress Protection | Environment Resistant |
| Contact Style | Socket |
| Service Class Detail | Potted Seal, Conductive |
| SKU | AMIMS3116P16-26SY |
