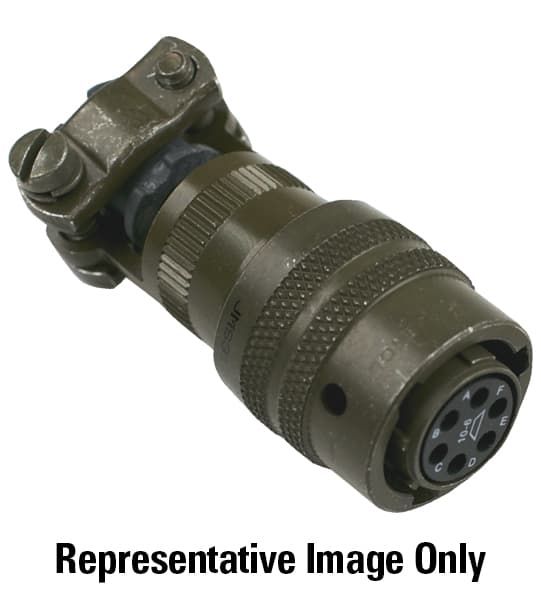

MS3116J10-6SWImage shown is a representation only. Exact specifications should be obtained from the product data sheet.

MS3116J10-6SW

Used in both military-aerospace and commercial applications, MIL-DTL-26482 I harsh environment connectors are offered with crimp M39029 contacts as well as solder contacts. 26482 1 connectors consist of the following:        •  Wall mount, box mount, bulkhead mount, cable connecting, jam nut, and hermetic receptacles        •  Straight plugs Available in 7 shell sizes with 60 insert patterns utilizing solder contacts, and 6 shell sizes with 47 insert patterns utilizing crimp contacts. Contact sizes include 20, 16, 12, 12 coax, and 8 coax. 26482 Series 1 connectors feature rugged aluminum shells with standard olive drab cadmium plating.

Manufacturer

Amphenol Industrial Operations

Manufacturer Product Number

MS3116J10-6SW

Brief Description

MS3116 - Connectors, Plug, Electric, Series 1, Solder Type, Straight, Bayonet Coupling, 26482 Series I

Request for quotation

MS3116J10-6SW Product Specification

Product CategoryProducts Connectors Circular Connectors & Accessories Circular Connectors
ManufacturerAmphenol Industrial Operations
Manufacturer Part NumberAmphenol Industrial Operations MS3116J10-6SW
Military SpecificationMIL-DTL-26482 I
SeriesSeries I
Connector TypeCircular, Plug
Number of Contacts6
Mount TypeStraight Plug
Contact PlatingGold
Maximum Operating Temperature125 °C
Minimum Operating Temperature-55 °C
Contact Size20(6)
Contact TypeSolder Contacts
Mating TypeBayonet
Finish/CoatingCadmium Olive Drab
Termination TypeSolder
Keyway PolarizationW
Service RatingI
Shell StyleStraight Plug
Shell Size - Insert Arrangement10-6
Service ClassJ
Shell MaterialAluminum
Contact GenderFemale
ConductivityConductive
Ingress ProtectionEnvironment Resistant
Contact StyleSocket
Service Class DetailInsert Seal with Gland for Jacketed Cable
SKUAMIMS3116J10-6SW
