5 Main Types of Rotary Switches with Their Applications

Rotary switches serve as vital components in both industrial and consumer applications, offering a practical solution for devices and circuits that require multiple switch positions. Unlike conventional switches, which typically provide only two states (e.g., on or off), rotary switches allow operators to easily navigate between numerous options through a simple rotational action. This functionality is indispensable in settings where complex configurations or system states need to be managed efficiently.

Initially advancing control systems across various fields, rotary switches have become essential elements in Switches and Relays, particularly as human-machine interface (HMI) components. Their role in facilitating interaction between users and equipment makes them more than just functional components; they are critical parts of sophisticated systems. Alongside the various Types of Relays, rotary switches enhance control precision, reducing the need for multiple separate switches and simplifying the design and operation of complex devices.

The evolution of rotary switches dates back to the early 20th century, marking a significant milestone in the development of electrical control systems. Their introduction brought a new era of precision and flexibility in equipment operation, laying the groundwork for advancements in fields ranging from telecommunications to aerospace. By offering a compact solution to multi-position switching needs, rotary switches—like different types of relays—have become indispensable in scenarios where reliability and simplicity are paramount.

The importance of rotary switches in modern technology and industry cannot be overstated. Their key benefits include:

• Providing intuitive and tactile control over complex systems
• Offering robust and reliable operation in challenging environments
• Enabling precise selection between multiple circuits or functions
• Simplifying equipment design by consolidating multiple switches into one
• Enhancing safety through clear, mechanical feedback and position indication

Due to these advantages, rotary switches are widely used in various industries and applications. They are essential in household devices like variable speed fans and dimmer switches, as well as specialized equipment such as professional audio gear, metering instruments, and aircraft control panels. Their adaptability allows them to function effectively alongside different types of relays across diverse sectors, from consumer electronics to industrial control systems.

As technology advances, rotary switches have evolved to meet new challenges. Modern designs incorporate advanced materials and precision engineering to improve durability and performance. Despite the rise of touch-sensitive and digital interfaces, rotary switches remain irreplaceable in many contexts, particularly where physical feedback and fail-safe operation are critical. The enduring relevance of rotary switches in an increasingly digital world underscores their fundamental importance within switches and relays. As we continue to push the boundaries of technology, these essential components—along with various types of relays—will undoubtedly play a vital role in shaping the future of electrical control systems.

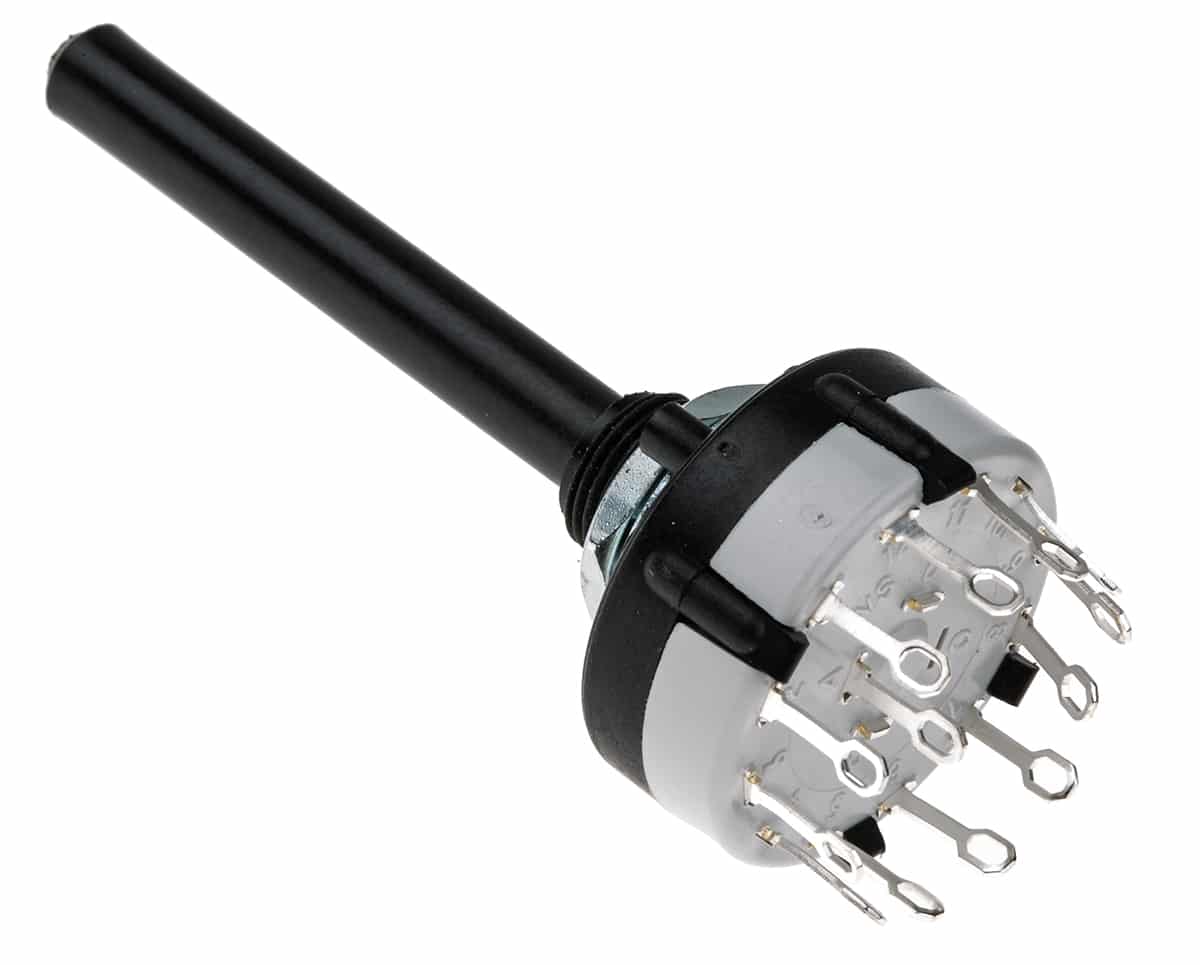

Types of Rotary Switches



Rotary switches are available in various designs, each suited to specific applications, environments, and performance requirements. While there are multiple ways to categorize these devices, such as by application or design features, the focus here is on the Pole and Throw Configuration. This classification provides a comprehensive understanding of rotary switch functionality and offers insights into their operational principles and application suitability. The main types of rotary switches based on their pole and throw configuration include:



• Single Pole Single Throw (SPST)
• Single Pole Double Throw (SPDT)
• Double Pole Single Throw (DPST)
• Double Pole Double Throw (DPDT)
• Multi-Pole Multi-Throw (MPMT)



Each of these rotary switch types possesses its own set of characteristics, advantages, and limitations, making them suitable for different applications across various industries. The selection of a rotary switch depends on factors such as the number of circuits to be controlled, the complexity of the switching requirements, and the specific environment in which the switch will be used.

This categorization’s significance lies in its ability to deliver a thorough understanding of rotary switch functionality and operational principles. It offers insights into the fundamental behavior and capabilities of different rotary switch types, facilitating clear comparisons of key performance metrics and aiding in informed decision-making for switch selection and system design across various industries and applications.



Types of Rotary Switches Specifications in Table

Category	Types	Key Features	Common Applications	Advantages	Disadvantages	Cost
Single Pole Single Throw (SPST)	Manual SPST, Panel Mount SPST	Simple on-off control	Basic electrical circuits	Easy to use, minimal maintenance	Limited functionality, bulky	Low
Single Pole Double Throw (SPDT)	SPDT, Panel Mount SPDT, Miniature SPDT, Waterproof SPDT	Controls two circuits from one input	Audio equipment, HVAC systems	Versatile, clear indication	Limited to two circuits, slower	Moderate
Double Pole Single Throw (DPST)	Heavy-Duty DPST, Multi-Position DPST	Controls two separate circuits simultaneously	Motor control, industrial machinery	Enhanced safety, simplifies wiring	Limited flexibility, increased complexity	Moderate
Double Pole Double Throw (DPDT)	Panel Mount DPDT, Miniature DPDT, High Current DPDT	Controls two circuits, each with two connections	Industrial controls, automotive systems	Versatile, space-efficient	Complexity, higher cost	High
Multi-Pole Multi-Throw (MPMT)	MPMT, Wafer Switches, Programmable MPMT	Controls multiple circuits with various options	Telecommunications, complex audio systems	Compact, highly customizable	Complexity, potential for misconnection	High



What are Single Pole Single Throw (SPST) Rotary Switches?



Single Pole Single Throw (SPST) Rotary Switches are mechanical switching devices designed to control a single electrical circuit. These switches feature a rotating mechanism that allows for the connection or disconnection of a single electrical path. SPST rotary switches are characterized by their simplicity and reliability, making them ideal for applications requiring basic on-off functionality.

The core components of an SPST rotary switch include a rotating shaft, a stationary contact, and a movable contact. When the shaft is turned to the “on” position, the movable contact connects with the stationary contact, completing the circuit. In the “off” position, these contacts are separated, breaking the circuit. SPST rotary switches are valued for their durability, ease of use, and ability to handle various current loads, making them indispensable in industrial equipment, control panels, and other applications requiring straightforward circuit control.



Working Principle of Single Pole Single Throw (SPST) Rotary Switches

The operation of SPST rotary switches is based on a simple mechanical principle:

• Initial State: The switch starts in either the “on” or “off” position, with the movable contact either connected to or disconnected from the stationary contact.
• Rotation: The user applies rotational force to the switch’s shaft or knob.
• Contact Movement: As the shaft rotates, it moves the internal mechanism, which in turn moves the movable contact.
• Circuit Completion/Breaking: Depending on the direction of rotation, the movable contact either connects with the stationary contact (completing the circuit) or separates from it (breaking the circuit).
• Detent Mechanism: Many SPST rotary switches include a detent mechanism that provides tactile feedback and helps maintain the switch in its selected position.
• Continuous Operation: The switch remains in its set position until manually rotated again, maintaining the circuit’s state.

This straightforward mechanism allows for reliable and consistent switching, making SPST rotary switches suitable for applications requiring manual control of a single circuit.

Applications of Single Pole Single Throw (SPST) Rotary Switches

SPST rotary switches find use in various industries and applications due to their simplicity and reliability:

1. Industrial Equipment: Used in single-phase machines for speed or load level control.
2. Control Panels: Employed to select different machine functions or operational modes.
3. Automotive: Used in vehicle dashboards for controlling various electrical systems.
4. Home Appliances: Implemented in devices like fans or heaters for power or mode selection.
5. Audio Equipment: Utilized in volume controls or input selection for audio devices.
6. Lighting Systems: Applied in light switches for on/off control in commercial and residential settings.
7. HVAC Systems: Used for temperature control or fan speed selection in heating and cooling units.
8. Power Tools: Implemented in tools like drills or saws for speed control or mode selection.



Types of Single Pole Single Throw (SPST) Rotary Switches

SPST rotary switches come in various designs to suit different applications:

• Panel Mount SPST Rotary Switches: Designed for installation on control panels or equipment enclosures.
• PCB Mount SPST Rotary Switches: Smaller switches intended for direct mounting on printed circuit boards.
• Waterproof SPST Rotary Switches: Sealed switches for use in harsh environments or outdoor applications.
• High Current SPST Rotary Switches: Designed to handle larger electrical loads in industrial applications.
• Miniature SPST Rotary Switches: Compact switches for use in space-constrained applications.
• Illuminated SPST Rotary Switches: Featuring built-in illumination for improved visibility and status indication.
• Explosion-Proof SPST Rotary Switches: Specially designed for use in hazardous environments where spark prevention is crucial.

Advantages of Single Pole Single Throw (SPST) Rotary Switches

SPST rotary switches offer several benefits:

1. Simplicity: Easy to understand and operate, reducing user error.
2. Reliability: Fewer components mean less chance of failure.
3. Durability: Robust construction suitable for industrial environments.
4. Cost-Effective: Generally less expensive than more complex switch types.
5. Versatility: Can be used in a wide range of applications.
6. Clear Visual Indication: Position of the switch is easily observable.
7. Low Maintenance: Require minimal upkeep due to simple design.

Disadvantages of Single Pole Single Throw (SPST) Rotary Switches

Despite their advantages, SPST rotary switches have some limitations:

1. Limited Functionality: Only suitable for simple on-off control of a single circuit.
2. Lack of Precision: Not ideal for applications requiring fine control or multiple settings.
3. Size: May be bulkier than some alternative switch types, especially in panel-mount applications.
4. Manual Operation: Requires physical interaction, which may not be suitable for automated systems.
5. Switching Speed: Generally slower than electronic switching alternatives.
6. Contact Wear: Over time, mechanical contacts may wear, potentially leading to reliability issues in high-cycle applications.
7. EMI Generation: Mechanical switching can generate electromagnetic interference in sensitive circuits.



What are Single Pole Double Throw (SPDT) Rotary Switches?

Single Pole Double Throw (SPDT) rotary switches are versatile electrical switching devices that allow the control of two separate circuits from a single input. These switches feature a rotating mechanism with one pole (input) and two throws (outputs). SPDT rotary switches enable users to direct power or signals from a single source to one of two possible destinations, making them more flexible than their SPST counterparts. They are widely used in various applications where alternating between two circuits or functions is required.

Working Principle of Single Pole Double Throw (SPDT) Rotary Switches

The operation of SPDT rotary switches involves the following steps:

1. Input Connection: The switch has a single input (pole) connected to a power source or signal.
2. Rotation: The user turns the switch knob or shaft to the desired position.
3. Contact Movement: As the knob rotates, it moves an internal contact mechanism.
4. Circuit Selection: The contact connects the input to one of the two outputs (throws).
5. Break-Before-Make: The switch typically breaks the connection with one circuit before making a connection with the other, preventing short circuits.
6. Detent Mechanism: A detent system provides tactile feedback and maintains the switch position.

This mechanism allows for reliable switching between two separate circuits, offering more control options than simple on-off switches.

Applications of Single Pole Double Throw (SPDT) Rotary Switches

SPDT rotary switches find use in various applications, including:

1. Audio Equipment: Switching between different input sources or output channels.
2. Industrial Control Panels: Selecting between different operational modes or power sources.
3. Automotive Systems: Controlling vehicle accessories or functions.
4. HVAC Systems: Switching between heating and cooling modes.
5. Telecommunications: Routing signals in communication equipment.
6. Test and Measurement Devices: Selecting different measurement ranges or functions.
7. Lighting Control: Managing multiple lighting circuits or scenes.
8. Power Distribution: Switching between main and backup power sources.



Types of Single Pole Double Throw (SPDT) Rotary Switches

SPDT rotary switches come in several variations to suit different applications:

1. Panel Mount: Designed for installation on control panels or equipment enclosures.
2. PCB Mount: Suitable for direct mounting on printed circuit boards.
3. Waterproof/Sealed: Offer protection against environmental factors for outdoor or harsh conditions.
4. High Current: Designed to handle larger electrical loads in power applications.
5. Miniature: Compact designs for space-constrained applications.
6. Multi-deck: Feature multiple switch sections on a single shaft for controlling multiple circuits.
7. Illuminated: Incorporate LEDs for visual indication of switch position or status.

Advantages of Single Pole Double Throw (SPDT) Rotary Switches

SPDT rotary switches offer several benefits:

1. Versatility: Ability to control two separate circuits with a single switch.
2. Clear Visual Indication: Switch position is easily observable.
3. Reliability: Robust construction suitable for industrial environments.
4. Flexibility: Can be used in a wide range of applications requiring circuit selection.
5. Safety: Break-before-make action prevents short circuits during switching.
6. Durability: Designed for long-term use with minimal maintenance.
7. Customizability: Available with various contact materials and configurations.

Disadvantages of Single Pole Double Throw (SPDT) Rotary Switches

Despite their advantages, SPDT rotary switches have some limitations:

1. Limited to Two Circuits: Not suitable for applications requiring more than two switching options.
2. Mechanical Wear: Moving parts can wear over time, potentially affecting reliability in high-cycle applications.
3. Switching Speed: Generally slower than electronic alternatives.
4. Size: May be bulkier than some solid-state switching options.
5. Manual Operation: Requires physical interaction, which may not be suitable for automated systems.
6. Contact Resistance: Can introduce small resistances in the circuit, which may be significant in low-voltage applications.
7. EMI Generation: Mechanical switching can produce electromagnetic interference in sensitive circuits.



What are Double Pole Single Throw (DPST) Rotary Switches?

Double Pole Single Throw (DPST) rotary switches are specialized electrical switching devices that control two separate circuits simultaneously with a single rotating action. These switches feature two poles (inputs) and one throw (output) for each pole. DPST rotary switches allow users to turn two independent circuits on or off at the same time, making them ideal for applications where synchronized control of multiple circuits is required. They offer enhanced functionality compared to single-pole switches while maintaining the simplicity of a single throw design.

Working Principle of Double Pole Single Throw (DPST) Rotary Switches

The operation of DPST rotary switches involves the following steps:

1. Dual Input Connection: The switch has two separate inputs (poles) connected to two independent power sources or signals.
2. Rotation: The user turns the switch knob or shaft to the desired position.
3. Simultaneous Contact Movement: As the knob rotates, it moves two internal contact mechanisms in unison.
4. Circuit Activation/Deactivation: Both contacts either close or open simultaneously, connecting or disconnecting both circuits at once.
5. Detent Mechanism: A detent system provides tactile feedback and maintains the switch position.
6. Isolation: In the off position, both circuits are completely isolated from their respective outputs.

This mechanism ensures synchronized control of two separate circuits, offering efficient management of dual-circuit systems.

Applications of Double Pole Single Throw (DPST) Rotary Switches

DPST rotary switches find use in various applications, including:

1. Industrial Machinery: Safely isolating equipment by disconnecting both power and control circuits.
2. Motor Control: Activating or deactivating two motors simultaneously.
3. Heating Systems: Controlling electric heating loads in industrial or commercial settings.
4. Automotive Electronics: Managing dual-circuit systems in vehicles.
5. Power Distribution: Switching both live and neutral lines in AC power systems.
6. Audio Equipment: Controlling stereo channels (left and right) simultaneously.
7. Lighting Control: Managing multiple lighting circuits in commercial or industrial environments.
8. Solar Energy Systems: Isolating solar panels and inverter circuits for maintenance.



Types of Double Pole Single Throw (DPST) Rotary Switches

DPST rotary switches come in several variations to suit different applications:

1. Panel Mount: Designed for installation on control panels or equipment enclosures.
2. PCB Mount: Suitable for direct mounting on printed circuit boards.
3. Heavy-Duty: Constructed for high-current applications in industrial settings.
4. Miniaturized: Compact designs for space-constrained applications, such as automotive electronics.
5. Weatherproof: Sealed designs for outdoor or harsh environment use.
6. Illuminated: Featuring built-in LEDs for visual indication of switch status.
7. Multi-Position: Offering additional switch positions beyond simple on-off functionality.

Advantages of Double Pole Single Throw (DPST) Rotary Switches

DPST rotary switches offer several benefits:

1. Simultaneous Control: Ability to manage two circuits with a single action.
2. Enhanced Safety: Complete isolation of both circuits in the off position.
3. Versatility: Suitable for a wide range of dual-circuit applications.
4. Reliability: Robust construction for long-term use in industrial environments.
5. Clear Visual Indication: Switch position is easily observable.
6. Simplified Wiring: Reduces the need for separate switches in dual-circuit systems.
7. Customizability: Available with various contact materials and current ratings.

Disadvantages of Double Pole Single Throw (DPST) Rotary Switches

Despite their advantages, DPST rotary switches have some limitations:

1. Limited Flexibility: Both circuits are always switched together, which may not be suitable for all applications.
2. Increased Complexity: More intricate internal mechanism compared to single-pole switches.
3. Higher Cost: Generally more expensive than simpler switch types.
4. Size: Typically larger than single-pole alternatives, which may be an issue in space-constrained designs.
5. Mechanical Wear: Moving parts can wear over time, potentially affecting reliability in high-cycle applications.
6. Manual Operation: Requires physical interaction, which may not be suitable for automated systems.
7. Potential for Misalignment: Improper assembly or wear could lead to one circuit switching before the other.



What are Double Pole Double Throw (DPDT) Rotary Switches?

Double Pole Double Throw (DPDT) rotary switches are versatile electrical switching devices that control two separate circuits, each with two possible connection paths. These switches feature two poles (inputs) and two throws (outputs) for each pole. DPDT rotary switches allow users to simultaneously switch two independent circuits between two different sets of connections with a single rotating action. This configuration offers maximum flexibility in circuit control, making DPDT rotary switches ideal for complex switching applications in various industries.

Working Principle of Double Pole Double Throw (DPDT) Rotary Switches

The operation of DPDT rotary switches involves the following steps:

1. Dual Input Connection: The switch has two separate inputs (poles) connected to two independent circuits.
2. Rotation: The user turns the switch knob or shaft to the desired position.
3. Simultaneous Contact Movement: As the knob rotates, it moves two internal contact mechanisms in unison.
4. Circuit Redirection: Each pole connects to one of its two possible outputs, redirecting both circuits simultaneously.
5. Break-Before-Make Action: The switch typically breaks the existing connections before making new ones, preventing short circuits.
6. Detent Mechanism: A detent system provides tactile feedback and maintains the switch position.

This mechanism allows for complex circuit control, enabling users to redirect two separate circuits between two sets of connections with a single action.

Applications of Double Pole Double Throw (DPDT) Rotary Switches

DPDT rotary switches find use in various applications, including:

1. Audio Equipment: Switching between different input/output configurations in stereo systems.
2. Industrial Control Panels: Managing multiple power sources or operational modes.
3. Telecommunications: Routing signals in complex communication systems.
4. Motor Control: Reversing motor direction in industrial machinery.
5. Test and Measurement Equipment: Selecting different measurement ranges or functions.
6. Power Distribution: Switching between main and backup power sources for critical systems.
7. Lighting Control: Managing complex lighting scenarios in theatrical or studio environments.
8. Automotive Systems: Controlling multiple vehicle functions or accessories.



Types of Double Pole Double Throw (DPDT) Rotary Switches

DPDT rotary switches come in several variations to suit different applications:

1. Panel Mount: Designed for installation on control panels or equipment enclosures.
2. PCB Mount: Suitable for direct mounting on printed circuit boards.
3. High Current: Constructed for applications requiring switching of large electrical loads.
4. Miniature: Compact designs for space-constrained applications.
5. Waterproof/Sealed: Offer protection against environmental factors for outdoor or harsh conditions.
6. Multi-Position: Featuring additional switch positions beyond the standard two.
7. Illuminated: Incorporating LEDs for visual indication of switch status or position.
8. Maintained vs. Momentary: Available in both maintained (stay-put) and momentary (spring-return) versions.

Advantages of Double Pole Double Throw (DPDT) Rotary Switches

DPDT rotary switches offer several benefits:

1. Versatility: Ability to control two circuits with multiple connection options.
2. Flexibility: Suitable for a wide range of complex switching applications.
3. Space Efficiency: Combines the functionality of two SPDT switches in one device.
4. Clear Visual Indication: Switch position is easily observable.
5. Reliability: Robust construction suitable for industrial environments.
6. Customizability: Available with various contact materials and configurations.
7. Simplified Wiring: Reduces the need for multiple switches in complex systems.

Disadvantages of Double Pole Double Throw (DPDT) Rotary Switches

Despite their advantages, DPDT rotary switches have some limitations:

1. Complexity: More intricate internal mechanism compared to simpler switch types.
2. Cost: Generally more expensive than single-pole or single-throw alternatives.
3. Size: Typically larger than simpler switch types, which may be an issue in compact designs.
4. Mechanical Wear: Moving parts can wear over time, potentially affecting reliability in high-cycle applications.
5. Manual Operation: Requires physical interaction, which may not be suitable for automated systems.
6. Learning Curve: Users may need training to understand and correctly operate more complex switching configurations.
7. Potential for Misconnection: Increased number of terminals may lead to wiring errors if not properly labeled or understood.



What are Multi-Pole Multi-Throw (MPMT) Rotary Switches?

Multi-Pole Multi-Throw (MPMT) rotary switches, also known as band switches, are highly versatile electrical switching devices capable of controlling multiple circuits with various connection options. These switches feature multiple poles (inputs) and multiple throws (outputs) for each pole, all operated by a single rotating mechanism. MPMT rotary switches offer the highest level of flexibility in circuit control, allowing users to manage complex switching scenarios in a compact, single-device format. They are designed to handle multiple inputs and outputs simultaneously, making them ideal for applications requiring intricate circuit management or multiple operational modes.

Working Principle of Multi-Pole Multi-Throw (MPMT) Rotary Switches

The operation of MPMT rotary switches involves the following steps:

1. Multiple Input Connections: The switch has several separate inputs (poles) connected to multiple independent circuits.
2. Rotation: The user turns the switch knob or shaft to the desired position.
3. Simultaneous Contact Movement: As the knob rotates, it moves multiple internal contact mechanisms in unison.
4. Complex Circuit Redirection: Each pole connects to one of its multiple possible outputs, redirecting all circuits simultaneously.
5. Break-Before-Make Action: The switch typically breaks existing connections before making new ones, preventing short circuits.
6. Detent Mechanism: A detent system provides tactile feedback and maintains the switch position.
7. Wafer Stack: Multiple wafers (switch sections) are often stacked on a single shaft to achieve the desired pole and throw configuration.

This mechanism allows for highly complex circuit control, enabling users to manage multiple circuits with various connection options through a single rotating action.

Applications of Multi-Pole Multi-Throw (MPMT) Rotary Switches

MPMT rotary switches find use in various applications, including:

1. Audio Equipment: Selecting multiple input/output configurations in professional audio systems.
2. Radio and Television: Switching between different bands, modes, or functions.
3. Industrial Control Panels: Managing complex machinery with multiple operational modes.
4. Test and Measurement Instruments: Selecting various measurement ranges, functions, or signal routing options.
5. Lighting Control Systems: Controlling multiple lighting circuits or scenes in theatrical or studio environments.
6. Telecommunications: Routing multiple signals in complex communication systems.
7. Automotive Electronics: Managing various vehicle functions or diagnostic modes.
8. Home Appliances: Controlling multiple settings in devices like washing machines or ovens.



Types of Multi-Pole Multi-Throw (MPMT) Rotary Switches

MPMT rotary switches come in several variations to suit different applications:

1. Wafer Switches: Constructed with multiple wafers stacked on a single shaft for increased pole and throw options.
2. Shorting vs. Non-Shorting: Shorting types maintain contact during rotation, while non-shorting types break before making new connections.
3. Panel Mount: Designed for installation on control panels or equipment enclosures.
4. PCB Mount: Suitable for direct mounting on printed circuit boards.
5. High Current: Constructed for applications requiring switching of large electrical loads.
6. Miniature: Compact designs for space-constrained applications.
7. Sealed: Offer protection against environmental factors for use in harsh conditions.
8. Programmable: Some advanced models allow for custom programming of switch positions and functions.

Advantages of Multi-Pole Multi-Throw (MPMT) Rotary Switches

MPMT rotary switches offer several benefits:

1. Versatility: Ability to control multiple circuits with numerous connection options.
2. Compactness: Combines the functionality of multiple simpler switches in one device.
3. Customizability: Available in a wide range of pole and throw configurations.
4. Space Efficiency: Reduces panel space requirements in complex control systems.
5. Reliability: Robust construction suitable for industrial and professional environments.
6. Clear Visual Indication: Switch position is easily observable, even in multi-position configurations.
7. Simplified Wiring: Reduces the need for multiple separate switches in complex systems.
8. Cost-Effectiveness: Can be more economical than using multiple individual switches for complex applications.

Disadvantages of Multi-Pole Multi-Throw (MPMT) Rotary Switches

Despite their advantages, MPMT rotary switches have some limitations:

1. Complexity: More intricate internal mechanism compared to simpler switch types, potentially increasing manufacturing costs.
2. Size: Can be larger than simpler switch types, which may be an issue in very compact designs.
3. Mechanical Wear: Multiple moving parts can wear over time, potentially affecting reliability in high-cycle applications.
4. Manual Operation: Requires physical interaction, which may not be suitable for fully automated systems.
5. Learning Curve: Users may need training to understand and correctly operate complex switching configurations.
6. Potential for Misconnection: Increased number of terminals may lead to wiring errors if not properly labeled or understood.
7. Limited Flexibility in Some Designs: Once manufactured, the switching configuration is typically fixed and cannot be easily modified.
8. Cost: High-quality MPMT rotary switches with numerous poles and throws can be expensive compared to simpler alternatives.



Conclusion

In conclusion, rotary switches are essential components in a variety of electrical and electronic applications. They come in several types, including Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), Double Pole Single Throw (DPST), Double Pole Double Throw (DPDT), and Multi-Pole Multi-Throw (MPMT) switches. Each type serves distinct purposes and offers various features, functionalities, advantages, and disadvantages. Understanding the specific use cases and design considerations of each type helps engineers and designers select the suitable switch for their projects, contributing to enhanced efficiency and performance in their systems.



Moreover, while rotary switches provide versatile control solutions for managing multiple circuits and operations, they also have limitations, such as complexity, potential mechanical wear, and the need for physical interaction. Nonetheless, advancements in rotary switch design continue to improve usability, reliability, and integration into modern technology, making them a vital component in both industrial and consumer electronics applications.



FAQs about Rotary Switches

1. What is a rotary switch?
   A rotary switch is an electrical switch operated by rotating a knob or lever, allowing the selection of different circuits or functions. It consists of a rotating shaft connected to a movable contact that makes connections with fixed contacts arranged in a circular pattern. Rotary switches provide a compact solution for managing multiple switch positions, offering more versatility than simple on/off switches.
2. What are the different types of rotary switches?
   The main types of rotary switches include Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), Double Pole Single Throw (DPST), Double Pole Double Throw (DPDT), and Multi-Pole Multi-Throw (MPMT). Each type offers different levels of complexity and functionality to suit various applications, ranging from simple on/off control to managing multiple circuits with various connection options.
3. What are the common applications for rotary switches?
   Rotary switches are used in a wide range of applications across various industries. They can be found in audio equipment for input/output selection, industrial control panels for managing operational modes, automotive systems for controlling vehicle functions, and HVAC systems for temperature control. Additionally, they are used in telecommunications for signal routing, lighting control systems in theatrical environments, test and measurement instruments, and home appliances like washing machines for cycle selection.
4. What are the advantages of using rotary switches?
   Rotary switches offer several advantages, including versatility in controlling multiple circuits or functions and a compact design that saves panel space. They provide clear visual indication of switch position and are known for their reliability and durability, especially in industrial environments. Rotary switches are customizable with various contact materials and configurations, simplify wiring in complex systems, and offer tactile feedback through detent mechanisms. Some models can also handle high current loads, making them suitable for a wide range of applications.
5. Are there any disadvantages to rotary switches?
   While rotary switches have many benefits, they also have some disadvantages. They can experience mechanical wear over time, especially in high-cycle applications, and are generally larger than some electronic switching alternatives. Rotary switches require manual operation, which may not be suitable for fully automated systems, and can potentially generate electromagnetic interference. More advanced models may be complex, requiring user training, and multi-pole multi-throw configurations can be costly. Once manufactured, the switching configuration is typically fixed, limiting flexibility, and they generally have slower switching speeds compared to electronic alternatives.
6. How do I choose the right rotary switch for my application?
   Choosing the right rotary switch involves considering several factors. You need to determine the number of circuits you need to control, which will influence the number of poles and throws required. Consider the current and voltage requirements of your application, as well as the environment where the switch will be used. Take into account the available space for installation, any need for visual indicators or illumination, and the expected frequency of use and required lifespan. Finally, ensure that the switch meets any specific industry standards or regulations relevant to your application.
