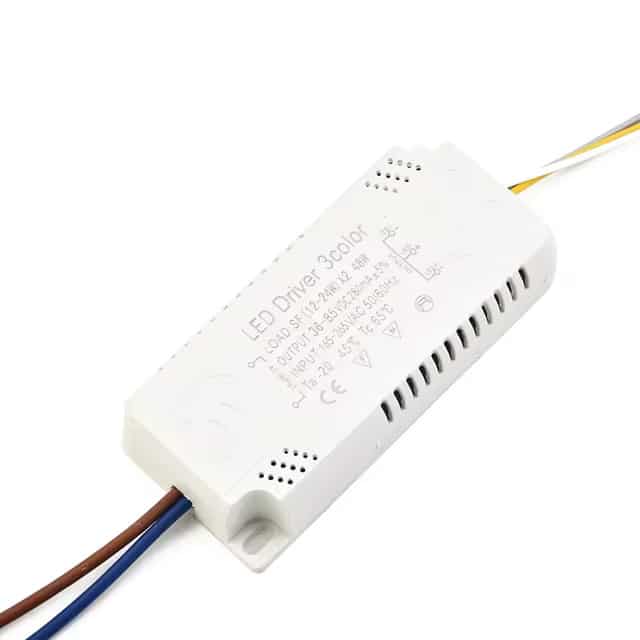

What is an LED Driver?
Think of an LED driver as the heart of an LED system. Just as our heart pumps blood to our organs, the LED driver supplies power to the LED, ensuring it functions correctly.
Unlike traditional bulbs that can operate directly from the power supplied by our homes, LEDs require a specific type of power. This is where the LED driver comes in. It takes the electricity from your power outlet and modifies it to a form that’s just right for the LED.
In simpler terms, an LED driver protects the LED by giving it the exact amount of energy it needs. Too much or too little power can harm the LED or reduce its lifespan. So, by using the right LED driver, we ensure that our LEDs shine bright and last long.
2 Types of LED Drivers
Understanding the types of LED drivers is crucial for ensuring the best performance of your LED setup. Let’s dive into the first main type: the Constant Current LED Driver.
Types of LED Drivers: Constant Current LED Drivers
Constant current drivers are specifically designed for LEDs that need a stable current to operate optimally. They adjust the voltage to maintain the desired current level, ensuring that the LED receives the exact amount of power it requires.
Working Principles of Constant Current LED Drivers
At its core, a constant current driver acts like a regulator. Imagine water flowing through a pipe. If too much water tries to rush in, a valve adjusts to let only the right amount through. Similarly, the constant current driver adjusts the voltage to ensure that the current remains constant. If there’s a risk of too much current flowing to the LED, the driver reduces the voltage. If there’s too little, it increases the voltage. This continuous adjustment ensures the LED always receives the right amount of power.
This section provides a clear understanding of constant current LED drivers, their primary functions, and the basic principles behind their operation.
Advantages and Disadvantages of Constant Current LED Drivers
Understanding the pros and cons of constant current LED drivers can help you make an informed decision about whether they’re the right choice for your specific needs.
Advantages of Constant Current LED Drivers:
- Consistent Brightness: One of the primary benefits of using a constant current driver is the consistent brightness it offers. No matter the fluctuations in the power supply or external conditions, the LED maintains a steady light output.
- Extended Lifespan: LEDs paired with constant current drivers tend to have a longer life. The driver ensures that the LED isn’t exposed to harmful levels of current, which can degrade the LED over time.
- Protection Against Overcurrent: These drivers are designed to prevent excessive current from reaching the LED, which can be damaging. This built-in protection is crucial for the longevity and safety of the LED system.
Disadvantages of Constant Current LED Drivers:
- Less Flexibility: Constant current drivers are designed for specific current levels. This means if you want to change the brightness or add more LEDs to the system, you might need a different driver.
- Cost: Generally, constant current drivers can be more expensive than their constant voltage counterparts, especially when considering high-quality models.
- Complexity in Installation: For those unfamiliar with LED systems, installing a constant current driver might be a bit more complex, as it requires ensuring the driver matches the LED’s specifications perfectly.
Weighing these advantages and disadvantages can guide you in determining if a constant current LED driver is the best fit for your lighting project.
Use Cases of Constant Current LED Drivers
These types of drivers are typically used in situations where the brightness of the LED needs to remain consistent. For instance, in spotlighting or downlights, any fluctuation in brightness can be noticeable and undesirable. By using a constant current driver, we ensure that the LED’s brightness remains steady, even if there are changes in the power supply or the environment.
Types of LED Drivers: Constant Voltage LED Drivers
Venturing into the realm of LED drivers, we encounter the second of the 2 types of LED drivers: the Constant Voltage LED Driver. Let’s break down what it is and why it might be the choice for your LED setup.
A constant voltage LED driver is designed to deliver a fixed voltage to the LED system. Instead of adjusting the current like its constant current counterpart, this driver ensures that the voltage remains steady, allowing the LEDs to draw the current they require.
Working Principles of Constant Voltage LED Drivers
Imagine a water tank that always maintains a specific water level. No matter how many pipes you connect to it, the water level (or voltage, in our case) remains the same. Each pipe (or LED) draws the amount of water (current) it needs. Similarly, a constant voltage driver maintains a set voltage level, allowing each LED in the system to draw its required current.
Advantages and Disadvantages of Constant Voltage LED Drivers
Advantages of Constant Voltage LED Drivers:
- Scalability: One of the standout benefits of constant voltage drivers is the ease of adding more LEDs to the system. Since the voltage remains constant, you can expand your setup without needing a new driver.
- Simplicity in Installation: Setting up a constant voltage system is generally more straightforward, especially for those new to LEDs. You just need to ensure the total current draw of the LEDs doesn’t exceed the driver’s capacity.
- Versatility: These drivers are commonly used in a wide range of applications, from decorative LED strips to large LED signboards, making them versatile choices.
Disadvantages of Constant Voltage LED Drivers:
- Brightness Variation: Since LEDs in a constant voltage system draw the current they need, there might be slight variations in brightness, especially if the LEDs are of different ages or from different batches.
- Less Protection: Unlike constant current drivers, constant voltage drivers don’t adjust to protect individual LEDs from potential overcurrent situations. It’s essential to ensure that the LEDs used are compatible with the supplied voltage.
Constant voltage LED drivers offer a different approach to powering LEDs, with their own set of benefits and challenges. Understanding these can help you select the right driver for your specific needs.
Use Cases
Constant voltage drivers are the go-to choice for setups where multiple LEDs are connected in parallel, such as LED strips or signage. In these configurations, each LED or segment draws the current it needs while operating at a consistent voltage.
How to Choose Between the 2 Types of LED Drivers
Selecting the right LED driver is akin to finding the perfect pair of shoes; it needs to fit just right to ensure comfort and longevity. Here’s a step-by-step guide to help you make the best choice for your LED setup.
-
Understand Your LED’s Specifications
Voltage and Current Requirements: Begin by checking the voltage and current specifications of your LED or LED strip. This information is usually provided by the manufacturer and is crucial for determining the type of driver you need.
Total Wattage: Calculate the total wattage of your LED setup. This is done by multiplying the voltage by the current (Watts = Volts x Amps). Ensure that the driver you choose can handle this wattage.
-
Determine the Type of Driver Needed
Single LED or Series Connection: If you’re powering a single LED or multiple LEDs in a series, a constant current driver is typically the best choice. It ensures each LED receives the exact current it needs.
Parallel Connection or LED Strips: For setups where multiple LEDs or segments are connected in parallel, a constant voltage driver is more suitable.
-
Consider the Environment
Indoor vs. Outdoor: If your LEDs are to be used outdoors, ensure the driver is weatherproof and can handle temperature fluctuations.
Space Constraints: The size of the driver can be a factor, especially in tight spaces. Make sure the driver fits comfortably in your intended location without overheating.
-
Safety and Certifications
Overload Protection: Opt for drivers that come with built-in overload protection. This feature ensures that the driver shuts off or reduces output in case of an overload, protecting your LEDs.
Certifications: Look for drivers that have safety and performance certifications, such as UL or CE. These certifications indicate that the driver meets specific safety and quality standards.
-
Future Expansion Plans
If you plan to expand or modify your LED setup in the future, consider a driver that offers some flexibility in terms of output and connectivity. This way, you won’t need to replace the driver when making changes.
-
Budget and Warranty
While it’s essential to stay within budget, investing in a quality driver can save costs in the long run by ensuring the longevity of your LEDs. Also, check for warranties or guarantees offered by the manufacturer.
Recap
The world of LEDs is vast and fascinating, and at the heart of their optimal performance lies the humble LED driver. Navigating through the types of LED drivers, we’ve uncovered the crucial role they play in the world of LEDs. Whether it’s the consistent brightness offered by constant current drivers or the scalability of constant voltage ones, understanding these types is key to unlocking the full potential of your LED setup.
As we conclude our journey, remember that the right LED driver is the backbone of every luminous LED display. By making informed choices about the types of LED drivers, you ensure a brighter, more efficient, and longer-lasting illumination experience. If you liked this guide, you may also like our guide on 4 Main Types of Flipflops.
Frequently Asked Questions (FAQs)
- What are the main types of LED drivers?
There are two primary types of LED drivers: constant current and constant voltage. Each type serves specific LED configurations and has its own set of advantages. - Why is it important to choose the right type of LED driver for my setup?
Selecting the appropriate driver ensures optimal LED performance, longevity, and safety. The wrong driver can lead to inconsistent brightness, reduced lifespan, or even damage to the LEDs. - Can I interchange the types of LED drivers in my setup?
Not typically. LEDs designed for constant current drivers may not work optimally with constant voltage drivers and vice versa. Always refer to the LED’s specifications before making any changes. - How do the types of LED drivers impact the brightness and efficiency of my LEDs?
The right LED driver ensures consistent brightness and maximizes efficiency. For instance, a constant current driver maintains steady brightness, while a constant voltage driver is ideal for parallel LED configurations.
