Electrical panels are the backbone of any modern Electrical Infrastructure, playing a crucial role in ensuring safe and efficient electricity distribution throughout residential, commercial, and industrial buildings. Much like the types of electrical boxes, types of electrical outlets, and types of circuit breakers, these panels are essential for managing electrical circuits and protecting wiring systems from overload or short circuits. In our comprehensive guide, we delve into the various types of electrical panels, each designed to cater to specific requirements and applications.
Whether you’re a seasoned electrician, a homeowner looking to understand your property’s electrical system, or an enthusiast in the field of electronics, understanding the different types of electrical panels, along with types of alarm systems for added security, is key to appreciating the complexity and importance of electrical safety and distribution. As we explore each type in detail, we’ll uncover their unique features, benefits, and ideal use cases, providing a thorough understanding of these critical components in any electrical setup.

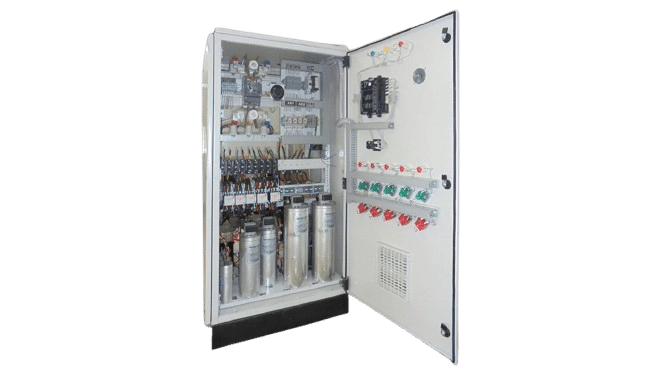

What are Electrical Panels?
Electrical panels, also commonly referred to as breaker panels, fuse boxes, or service panels, serve as the central hub of a building’s electrical system. Essentially, they are the point where the main power line from the utility company enters a home or business, and from here, power is distributed to various circuits that run throughout the premises. The primary function of these panels is to distribute electricity safely and efficiently while providing a means to shut off power in case of an emergency or for maintenance.
At its core, an electrical panel is a metal box, typically grey, containing multiple circuit breakers or fuses. These components are responsible for controlling the flow of electrical power. When a circuit draws too much power, the breaker trips or the fuse blows, thus cutting off the power to that circuit. This mechanism is a critical safety feature, preventing overloading, which can cause fires or damage to appliances and devices.
The role of electrical panels in ensuring electrical safety cannot be overstated. They not only manage the distribution of electricity but also protect the entire electrical system from potential hazards such as short circuits and overloads. Understanding the types of electrical panels and their specific functions is crucial for anyone involved in the construction, maintenance, or upgrading of electrical systems.
In the next sections, we will explore the various types of electrical panels, such as the Main Breaker Panel, Main Lug Panel, Sub-Panel, and Transfer Switches. Each type has its unique working principles, advantages, disadvantages, characteristics, and specific use cases. By the end of this guide, you will have a comprehensive understanding of these types and how they fit into different electrical systems.
Types of Electrical Panels
4 Main Types of Electrical Panels include:
- Main Breaker Panel
- Main Lug Panel
- Sub-Panel
- Transfer Switches
Types of Electrical Panels 1: Main Breaker Panel
Working Principles of Main Breaker Panel
The Main Breaker Panel is a critical type of electrical panel that serves as the primary control center for a home’s electrical system. This panel houses the main breaker, which functions as the main disconnect for the power supply to the building. It essentially acts as a gatekeeper, controlling the flow of electricity from the utility company into the building’s internal network of circuits. The main breaker is a large switch that can manually shut off all power to the building, providing an essential safety feature during maintenance or emergencies.
Advantages and Disadvantages of Main Breaker Panel
Advantages:
- Centralized Control: Allows for easy management of the entire building’s electrical system from a single point.
- Safety Mechanism: The main breaker acts as a fail-safe, protecting against power surges and electrical overloads.
- Easy to Locate: Being the primary panel, it is usually placed in an accessible location for quick power shutdown.
Disadvantages:
- Size and Space: These panels are typically larger and require more space, which can be a limitation in smaller buildings.
- Cost: They can be more expensive than other types of panels due to their size and capacity.
Characteristics of Main Breaker Panel
- Capacity: Main breaker panels come in various sizes, typically ranging from 100 to 200 amps, to cater to different electrical load requirements.
- Construction: They are usually made of sturdy metal and are installed in easily accessible areas like basements or utility rooms.
- Components: Contains a main breaker, multiple circuit breakers, and sometimes additional space for future expansion.
Use Cases of Main Breaker Panel
These types of electrical panels are ideal for residential and commercial buildings where a central control point for electricity is needed. They are especially suitable for:
- New constructions where a robust and scalable electrical system is being installed.
- Buildings undergoing major renovations or upgrades in electrical infrastructure.
- Large homes or commercial spaces with substantial electrical load requirements.
In the next section, we’ll explore the Main Lug Panel, another type of electrical panel, and delve into its workings and applications.
Types of Electrical Panels 2: Main Lug Panel
Working Principles of Main Lug Panel
The Main Lug Panel is another essential type of electrical panel, distinguished by its structure and function. Unlike the Main Breaker Panel, the Main Lug Panel connects directly to the meter without a main circuit breaker. Instead, the line wires run to lugs in this type of panel. Typically, a separate disconnect switch is located outside the building near the meter, which acts as the main breaker. These types of electrical panels are often used as sub-panels connected to the Main Breaker Panel.
Advantages and Disadvantages of Main Lug Panel
Advantages:
- Space Efficiency: Main Lug Panels are more compact, making them suitable for smaller spaces or as add-ons to existing electrical systems.
- Cost-effective: They are generally less expensive than Main Breaker Panels, offering a budget-friendly option.
- Flexibility: Ideal for situations where a sub-panel is needed, such as in detached garages or workshops.
Disadvantages:
- No Main Breaker: The absence of a main breaker in the panel itself requires an external disconnect, which may not be convenient in emergencies.
- Limited Applications: Not suitable as the primary panel in most residential or commercial settings due to safety regulations.
Characteristics of Main Lug Panel
- Configuration: Designed to be connected to a main breaker panel or have an external disconnect.
- Ampere Rating: Available in various sizes, similar to the Main Breaker Panels, to accommodate different electrical loads.
- Installation: Commonly used as sub-panels for specific areas within a property that require their own circuit distribution center.
Use Cases of Main Lug Panel
These types of electrical panels are particularly useful in scenarios where an additional panel is required, apart from the main panel. They are well-suited for:
- Supplementing the main panel in large properties or multi-story buildings.
- Providing a dedicated power distribution point in detached structures like garages, workshops, or guest houses.
- Renovation projects where the existing electrical system needs expansion without replacing the main panel.
In the upcoming section, we will examine the Sub-Panel, delving into its unique attributes and scenarios where it is most beneficial.
Types of Electrical Panels 3: Sub-Panel
Working Principles of Sub-Panel
A sub panel, sometimes referred to as a secondary panel, is an additional panel that can be installed alongside the main panel. It is connected to the main panel through a set of large cables and has its own circuit breakers. These types of electrical panels are particularly useful in distributing power to a specific area or section of a property, such as a home addition, garage, or workshop. They help manage the electrical load more efficiently by providing a localized distribution point, reducing the strain on the main panel.
Advantages and Disadvantages of Sub-Panel
Advantages:
- Load Management: Helps in balancing the electrical load by distributing it across different areas, enhancing overall efficiency.
- Convenience: Offers a convenient point to control power in a separate area without needing to access the main panel.
- Expansion Capability: Ideal for properties undergoing expansion, allowing for the addition of new circuits without overloading the main panel.
Disadvantages:
- Installation Complexity: Requires proper planning and installation to ensure safe operation, as it involves working with high-capacity cables and breakers.
- Additional Cost: Involves extra expenditure for the panel itself, installation, and wiring.
- Space Requirement: Needs dedicated space for installation, which might be challenging in smaller buildings or crowded utility areas.
Characteristics of Sub-Panel
- Connection: Directly connected to the main panel but operates independently with its own circuit breakers.
- Size and Capacity: Varies in size and capacity, chosen based on the specific needs of the area it serves.
- Installation Location: Often installed closer to the area it supplies, for easier access and better load management.
Use Cases of Sub-Panel
These types of electrical panels are highly versatile and find their use in a variety of settings:
- Residential homes with extensions or separate structures like pool houses, where an independent power distribution point is necessary.
- Commercial buildings or complexes where different sections require their own electrical control panel.
- Industrial settings where specific areas or machinery need isolated power management separate from the main facility.
Next, we will explore Transfer Switches, a unique type of electrical panel, and understand their role and significance in electrical systems.
Types of Electrical Panels 4: Transfer Switches
Working Principles of Transfer Switches
Transfer Switches are a specialized type of electrical panel that play a crucial role in power management, particularly in backup power systems. These switches are designed to transfer the power source from the main utility to a backup generator in the event of a power outage. The switch can be automatic (ATS) or manual, and it ensures a seamless transition to keep critical systems running without interruption. The ATS is particularly valuable in scenarios where immediate power restoration is crucial, as it automatically switches to the backup generator upon detecting a power loss and then switches back when utility power is restored.
Advantages and Disadvantages of Transfer Switches
Advantages:
- Reliability: Provides a reliable means of switching between the main power supply and a generator during outages.
- Safety: Prevents back-feeding of electricity into the grid, ensuring the safety of utility workers and the public.
- Automatic Operation: ATS units offer automatic operation, reducing downtime and manual intervention.
Disadvantages:
- Cost: Transfer switches, especially automatic ones, can be expensive to install and maintain.
- Complex Installation: Requires professional installation and regular maintenance for optimal performance.
- Space and Compatibility: Needs additional space and must be compatible with the generator and existing electrical system.
Characteristics of Transfer Switches
- Types: Available in manual and automatic versions, with various amperage ratings to match different generator capacities.
- Installation: Typically installed near the main electrical panel and connected to essential circuits or the entire panel, depending on the capacity.
- Usage: Commonly used in conjunction with a backup generator, either portable or standby.
Use Cases of Transfer Switches
These types of electrical panels are essential in settings where continuous power is critical:
- Residential properties in areas prone to frequent power outages, ensuring uninterrupted power supply for essential appliances.
- Hospitals and healthcare facilities, where power continuity is vital for life-support systems and medical equipment.
- Commercial and industrial facilities requiring constant power for operations, data centers, or sensitive equipment.
In the next section, we’ll present a comparison table to provide a clear overview of the different types of electrical panels discussed, highlighting their key features, advantages, disadvantages, and use cases.
Table of Comparison for 4 Types of Electrical Panels
The following table provides a concise comparison of the main features, advantages, disadvantages, and use cases of each type of electrical panel we’ve discussed: Main Breaker Panel, Main Lug Panel, Sub-Panel, and Transfer Switches.
| Feature/Aspect | Main Breaker Panel | Main Lug Panel | Sub-Panel | Transfer Switches |
| Basic Function | Acts as the primary control center for a home’s electrical system contains the main disconnect. | Connected directly to the meter, often used as a sub-panel. | Provides localized distribution of power to specific areas. | Switches power source from main utility to a backup generator during outages. |
| Advantages | Centralized control, safety mechanism, easy location. | Compact, cost-effective, and flexible for sub-panel use. | Efficient load management, convenient localized control, ideal for property expansion. | Reliability in power continuity, safety against backfeeding, and automatic operation in ATS. |
| Disadvantages | Larger size, higher cost. | No main breaker in the panel, limited to the primary panel. | Installation complexity, additional cost, space requirement. | High cost, complex installation, space, and compatibility requirements. |
| Ideal Use Cases | Residential and commercial buildings needing a central electrical control point. | Add-ons to existing systems, detached structures like garages. | Home extensions, separate buildings, and commercial sections needing their own panel. | Settings where continuous power is critical, like hospitals, and residential properties in outage-prone areas. |
This table offers a quick reference to understand how each type of electrical panel fits into different electrical systems, catering to specific needs and scenarios.
In the conclusion section, we will summarize the key points covered in this guide, helping you determine the most suitable type of electrical panel for your specific requirements.
Conclusion
In this comprehensive guide, we have explored the various types of electrical panels – Main Breaker Panels, Main Lug Panels, Sub-Panels, and Transfer Switches. Each type serves a unique role in the efficient and safe distribution of electricity. The Main Breaker Panel, acting as the central control point, is ideal for most residential and commercial buildings. In contrast, the Main Lug Panel, often used as a sub-panel, is suitable for smaller spaces or as an addition to existing systems. Sub-Panels are excellent for distributing power to specific areas, especially in larger properties or extensions, while Transfer Switches are indispensable in scenarios requiring uninterrupted power supply.
Understanding these different types of electrical panels and their specific applications is crucial for anyone involved in building, maintaining, or upgrading electrical systems. Whether you’re a professional electrician, a homeowner, or an electrical enthusiast, this knowledge is essential for making informed decisions about electrical safety and efficiency in any setting.
FAQs
- What are the different types of electrical panels?
The main types of electrical panels are Main Breaker Panels, Main Lug Panels, Sub-Panels, and Transfer Switches. Each has distinct features and is suited for different applications.
- How do I choose the right types of electrical panels for my needs?
The choice depends on several factors, including the size of the property, the electrical load requirements, whether the panel will serve as the main panel or a sub-panel, and the need for backup power solutions. Consulting with a professional electrician is advisable for tailored advice.
- What are the key considerations for installing an electrical panel?
Key considerations include understanding the electrical load of the building, the panel’s location (it should be easily accessible), the type of panel suitable for your needs (main panel, sub-panel, or transfer switch), compliance with local electrical codes, and ensuring professional installation for safety and efficiency.
